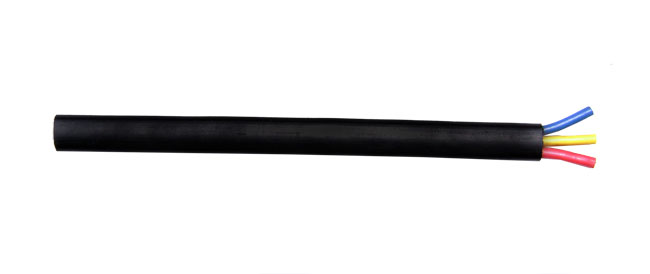

We at Viral Electronics manufacture 3 Core Submersible Pump Flat Cables for critical space requirement, protection against indefinite immersion in water under specified conditions, Insulation and Sheath 70° C / 105° C Halogen free FRLS PVC Compound, Polyethylene, TPE, HOFR and Silicon Rubber on request as per IS 694:1990. We manufacture it from 3 Core 1.5 Sq.mm. upto 16 Sq.mm. Cross sections.
| Conductor | Insulation | Sheath | Conductor Resistance @ 20° C (Max.) Ohms/km | Current Carrying Capacity @40° C | ||
|---|---|---|---|---|---|---|
| Overall dimensions | ||||||
| Area (Nom.) Sq. mm | No/dia. of strands mm Amps | Thickness (Nom.) mm | Thickness (Nom.) mm | Size (Approx.) (W x T) mm | ||
| 1.5 | 22/0.3 | 0.8 | 1.1 | 11.6 x 5.5 | 12.1 | 16 |
| 2.5 | 36/0.3 | 0.9 | 1.2 | 13.9 X 6.4 | 7.41 | 22 |
| 4 | 56/0.3 | 1 | 1.3 | 16.1 X 7.1 | 4.95 | 29 |
| 6 | 84/0.3 | 1.1 | 1.4 | 18.6 X 8.0 | 3.3 | 37 |
| 10 | 80/0.4 | 1.3 | 1.6 | 23.4 X 10.0 | 1.91 | 51 |
