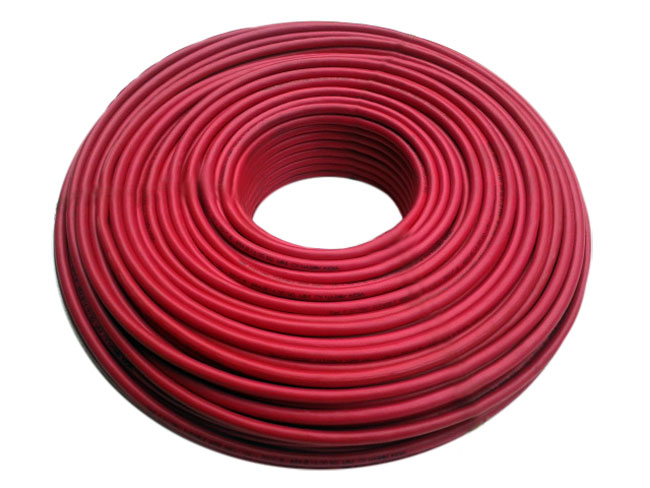

We at Viral Electronics manufacture PVC Insulated Battery Cables used for Battery Charging units in battery industries, in automobiles , railways, Traction forklift Charger, Solar Batteries. We manufacture cables from 4 sq.mm to 240 sq.mm.
Oil & Acid resistance, Shock absorption, Ergonomic comfort, Soft texture.
Conductors : The conductors shall be composed of plain annealed high conductivity copper wires complying with IS 8130:1984.
Flexibility : Class 5 Type as per IS 8130:1984
Temperature : Withstands Max 105 Deg Celsius.
Covering : The general service normal duty pvc compound shall confirm to the requirements of IS 5831 (1984).
| Nominal Cross-Sectional Area of Conductor | FLEXIBLE COPPER CONDUCTORS FOR SINGLE-CORE AND CABLES, CLASS 5 | ||||
|---|---|---|---|---|---|
| MAXIMUMDIAMETES OF % kW.S IN CONDUCTOR | MAXIMUM RESISTANCE OF CONDUCTOR @ 20° C 85 % Duty Cycle | ||||
| Sq mm2 | mm | Ohm/km | |||
| 4 | 0.3 | 4.95 | |||
| 6 | 0.3 | 3.3 | |||
| 10 | 0.41 | 1.91 | |||
| 16 | 0.41 | 1.21 | |||
| 25 | 0.41 | 0.78 | |||
| 35 | 0.41 | 0.554 | |||
| 50 | 0.41 | 0.386 | |||
| 70 | 0.51 | 0.272 | |||
| 95 | 0.51 | 0.206 | |||
| 120 | 0.51 | 0.161 | |||
| 150 | 0.51 | 0.129 | |||
| 185 | 0.51 | 0.106 | |||
| 240 | 0.51 | 0.08 | |||
