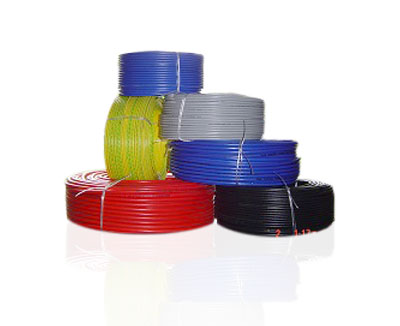

We at Viral Electronics manufacture House & Electric Panel Wiring Wires. Wiring Cables, PVC insulated Sheathed / Unsheathed with plain annealed electrolytic copper conductor conforming to IS: 694:1990 for working voltages upto and including 1100V.
| Area Sq. mm. | No. & Dia. Of Wires (Nom.) mm | Unsheathed Cables | Sheathed Cables | |
|---|---|---|---|---|
| Insulation n Thickness (Nom.) mm | Approx. Overall Diameter r mm | Insulation n Thickness (Nom.) mm | ||
| 1 | 1/1.13 | 0.7 | 2.6 | 0.6 |
| 1.5 | 1/1.38 | 0.7 | 2.9 | 0.6 |
| 2.5 | 1/1.78 | 0.8 | 3.5 | 0.7 |
| 4 | 1/2.25 | 0.8 | 4 | 0.8 |
| 4 | 7/0.85 | 0.8 | 4.3 | 0.8 |
