These cables are mainly used in the automotive industry by the original equipment manufacturer i.e. in the vehicles mostly in the form of harnesses.

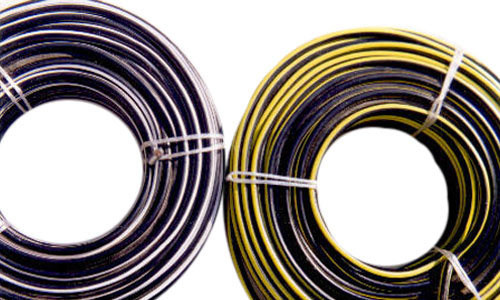

PVC Insulated Auto Cables are available in different sizes, ranging from 0.5 to 120 mm. Built using different conductor numbers like 7, 11 and 15, the overall diameter of the cables range between 2.15 and 25.00 mm.
| Conductor Nominal Area sq. mm. | Conductor Number and Dia. of wire (Nom.) mm. | Cable Parameters Radial Thickness of insulation (Nom.) mm | Cable Parameters Overall diameter (Approx.) mm. | Cable Parameters Current Carrying capacity Amps. |
|---|---|---|---|---|
| 0.5 | 16/0.2 | 0.5 | 2.2 | 4 |
| 0.65 | 9/0.3 | 0.6 | 2.4 | 6 |
| 1 | 14/0.3 | 0.6 | 2.7 | 11 |
| 1.5 | 21/0.3 | 0.6 | 3.05 | 14 |
| 2 | 28/0.3 | 0.6 | 3.25 | 17 |
| 2.5 | 35/0.3 | 0.7 | 3.6 | 19 |
| 3 | 44/0.3 | 0.8 | 4.2 | 22 |
| 4.5 | 65/0.3 | 1 | 4.9 | 28 |
| 6 | 84/0.3 | 1 | 5.4 | 31 |
| 8 | 120/0.3 | 1.2 | 6.8 | 36 |
