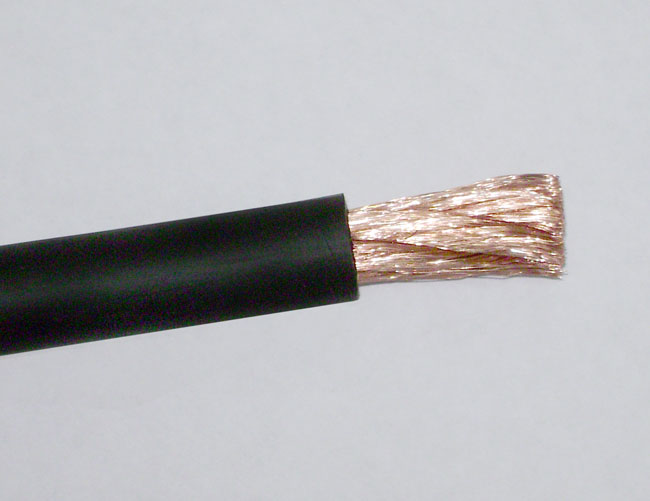

Superflex Thermoplastic Elastomeric Battery Cables

SUPERFLEX THERMOPLASTIC ELASTOMERIC BATTERY CABLES

Superflex Thermoplastic Elastomeric Battery Cables

We at Viral Electronics manufacture Superflex Battery Cables used for Battery Charging units in battery industries, as connectors for 2 volt traction batteries industries, railways, Traction forklift Charger, Solar Batteries. We manufacture cables from 10.00 sq.mm to 95 sq.mm.

TPE Feature

Super Flexibility. Oil & Acid resistance, Shock absorption, Ergonomic comfort, Soft texture.

Specifications

Conductors  : The conductors shall be composed of plain annealed high conductivity copper wires complying with IS 8130:1984.

Flexibility  : Class 6 Type as per IS 8130:1984

Temperature  : Withstand Max 90 Deg Celsius. and optional on request Max 200 Deg Celcius

Covering  : The general service normal duty elastomeric compound shall be Type SE 1 confirming to the requirements of IS 6380:1984. The heat resisting, oil resisting normal duty elastomeric compound shall be Type SE 3 confirming to the requirements of IS 6380: 1984.

Current Rating of General Service Normal Duty Elastomeric Compound Covered Cable with Copper Conductor

Nominal Cross-Sectional Area of Conductor FLEXIBLE COPPER CONDUCTORS FOR SINGLE-CORE AND CABLES, CLASS 6
MAXIMUMDIAMETES OF % kW.S IN CONDUCTOR MAXIMUM RESISTANCE OF CONDUCTOR @ 20° C 85 % Duty Cycle
(1)(2)(3)
Sq mm2mmOhm/km
100.211.91
160.211.21
250.210.780
350.210.554
500.310.386
700.310.272
950.310.206
