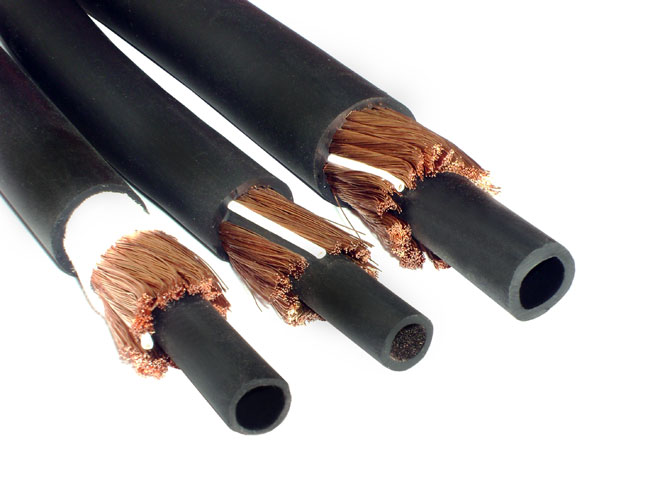

We at Viral Electronics manufacture Mig Tig Co2 Coax Torch Welding cables for general service normal duty elastomeric compound and HOFR for use in the welding industry i.e. namely in Mig Tig Co2 Coax welding equipments. We manufacture cables from 16 Sq.mm to 95 Sq.mm.
In Welding Industry, Fabrication Industry, Automotive Industry.
Conductors : The conductors shall be composed of plain or tinned plated annealed high conductivity copper wires complying with IS 8130:1984.
Covering : The general service normal duty elastomeric compound shall be Type SE 1 confirming to the requirements of IS 6380:1984. The heat resisting, oil resisting normal duty elastomeric compound shall be Type SE 3 confirming to the requirements of IS 6380: 1984.
Cooling : Air cooled
Duty cycle : 60%
| Nominal Cross-Sectional Area of Conductor | Current Rating at a Maximum Duty Cycle of | ||||
|---|---|---|---|---|---|
| 100% | 85% | 60% | 30% | 20% | |
| Sq mm2 | Amp | Amp | Amp | Amp | Amp |
| 25 | 125 | 136 | 161 | 228 | 279 |
| 35 | 156 | 169 | 201 | 285 | 349 |
| 50 | 197 | 214 | 254 | 360 | 440 |
| 70 | 248 | 269 | 320 | 453 | 555 |
| 95 | 299 | 342 | 386 | 546 | 669 |
| Nominal Cross-Sectional Area of Conductor | Current Rating at a Maximum Duty Cycle of | ||||
|---|---|---|---|---|---|
| 100% | 85% | 60% | 30% | ||
| Sq mm2 | Amp | Amp | Amp | Amp | |
| 16 | 135 | 146 | 174 | 246 | |
| 25 | 177 | 192 | 228 | 343 | |
| 35 | 221 | 240 | 285 | 403 | |
| 50 | 279 | 303 | 360 | 509 | |
| 70 | 352 | 382 | 454 | 643 | |
| 95 | 424 | 460 | 547 | 774 | |
